Glazed Tile Steel Roofing Sheet Machine

  • Glazed Tile Steel Roofing Sheet Machine
  • Glazed Tile Steel Roofing Sheet Machine
  • Glazed Tile Steel Roofing Sheet Machine
  • Glazed Tile Steel Roofing Sheet Machine

Glazed Tile Steel Roofing Sheet Machine

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Bag/Bags
    Delivery Time: 30 Days
    Packaging: nude package
    Productivity: 20m/min
    Brand: ZT
    Transportation: Ocean,Land
    Place of Origin: cangzhou
    Supply Ability: 30sets/month
    Certificate: ce/iso9001

Basic Info

Model No.: ZT-004-002

Product Description

Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

Product Description

Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine can make the glazed tile with many color.So the finished glazed tile steel roofing sheet is rather beautiful.The weight of this tile is light prepared with the traditional clay tile or cement tile poured into fibro for its thickness mostly between 0.3mm to 0.8mm.Moreover it can save cost in a large extent in the construction process.Meanwhile the application of this Glazed Tile Steel Roofing Sheet keeps pace with the modern popularity and development.

In order to cater for customer's request, we also can customized and design the machine as customer's size requirement.


The profile drawing of the glazed tile roofing sheet


glazed tile


Supported material colored steel, galvanized plate, or aluminum plate

Material thickness 0.3---0.8mm

Material hardness 195 mpa---350 mpa

Material width 1200mm

Formed width 950mm

Wavelength 190mm

Step height 25mm

Working speed 8-12m/min(speed could be much bigger )



glazed tile roll forming machine 1

Uncoiler System of Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

Loading-capacity:5 T

Uncoiling-width:1250 mm
Inner-diameter: 450-550 mm

It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system.

glazed tile roll forming machine 2

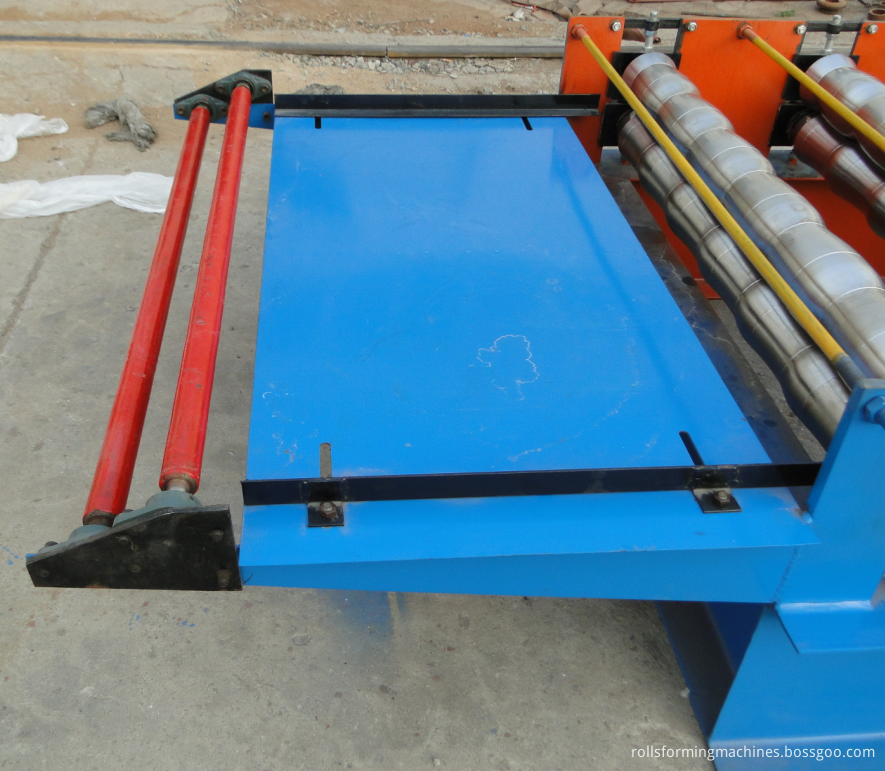

Entry Beach of Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to equipment regulation to know the function of locate panel.


glazed tile roll forming machine 3

glazed tile roll forming machine 4

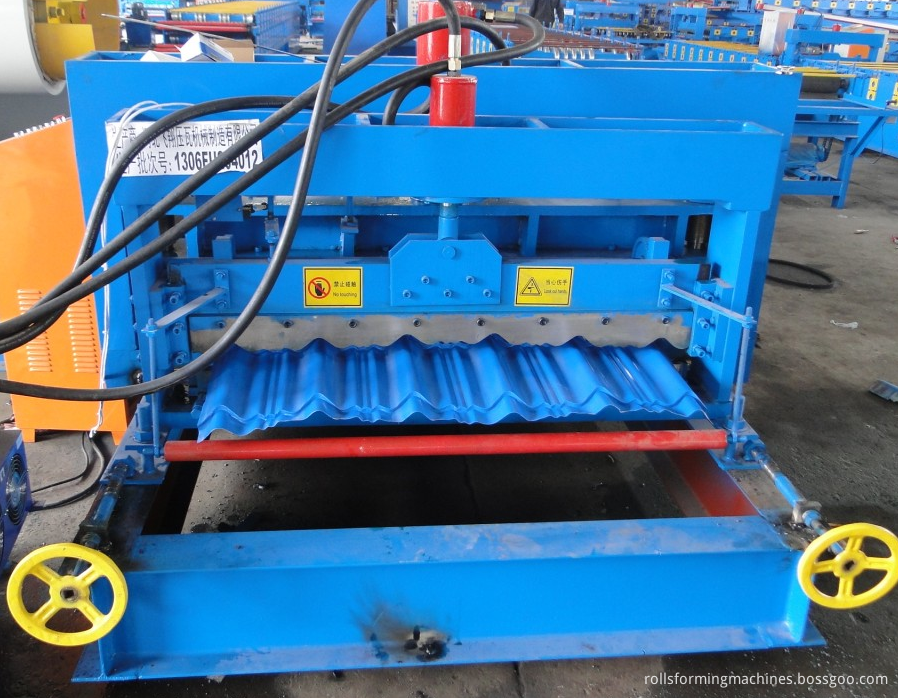

Main roll forming machine of Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

Length of the main part:8500*1450*1500 mm

Weight of main part: 4.6 T

Voltage:380 V/50 HZ 3 Phase
Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80 mm

Number of rollers : 15 rollers

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Main power: 3 kw

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

glazed tile roll forming machine 5

Cutting System of Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

Material of blades: Cr12 quenched

Power supply : hydraulic power

Feature : Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC.

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

glazed tile roll forming machine 6

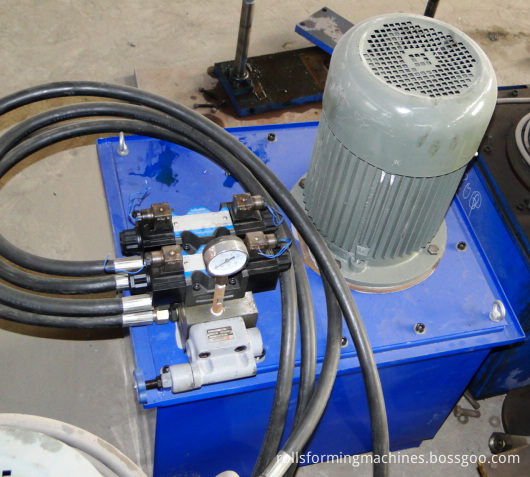

Hydraulic Station of Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

Power:5.5 kw

Hydraulic oil: 46#

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.


glazed tile roll forming machine 7

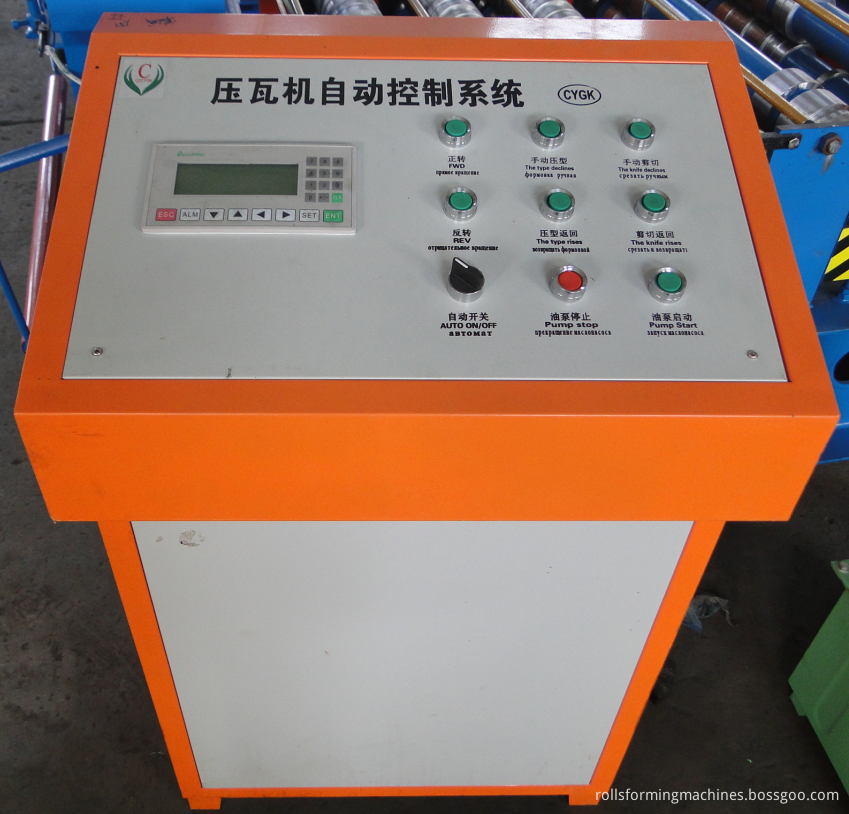

Electric Control System of Glazed Tile Steel Roofing Sheet Cold Roll Forming Machine

1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Panasonic.

glazed tile roll forming machine 8

One counter gauges length, pulses, and decides length.Omron encoder for length measuremen

glazed tile roll forming machine 9



It adopts welded steel and supported roller to transmit the products
